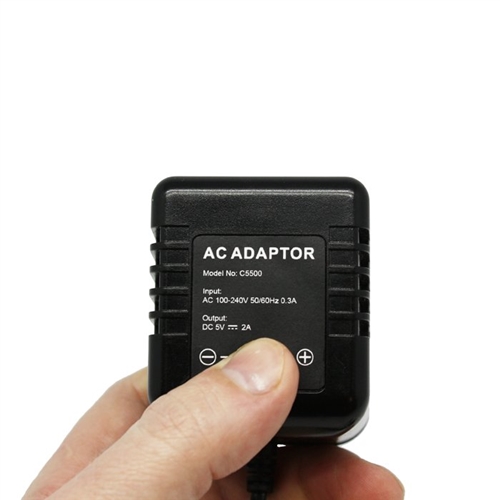

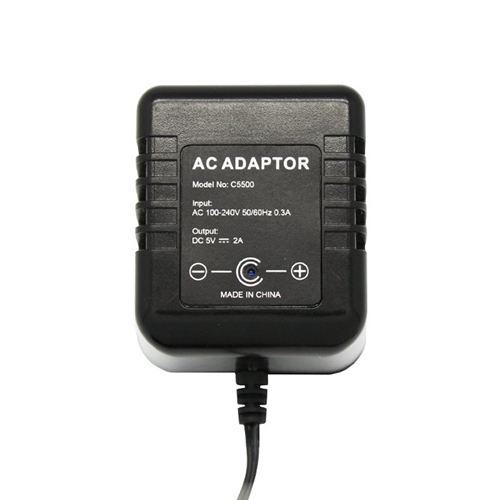

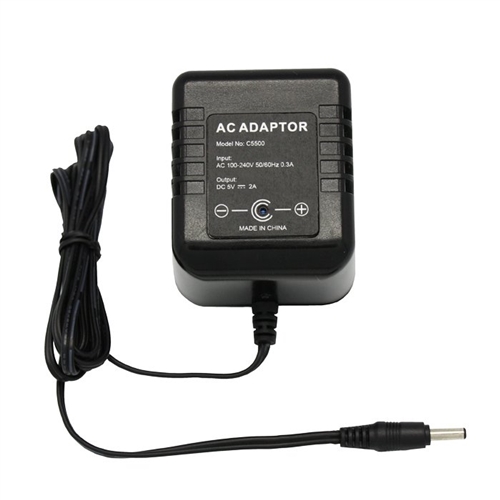

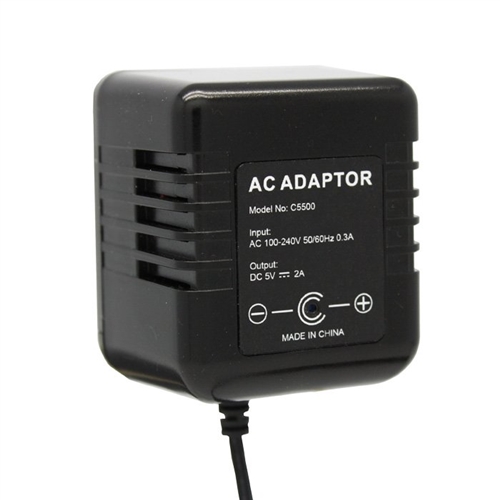

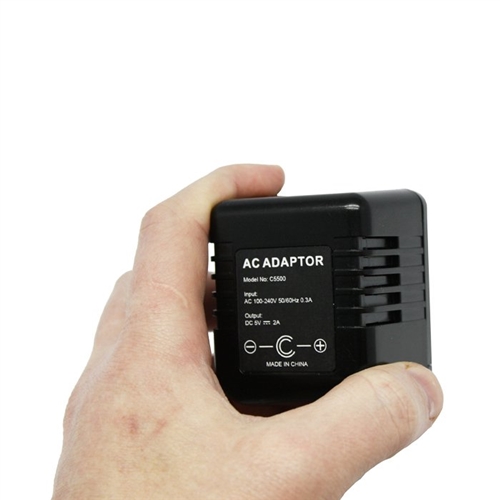

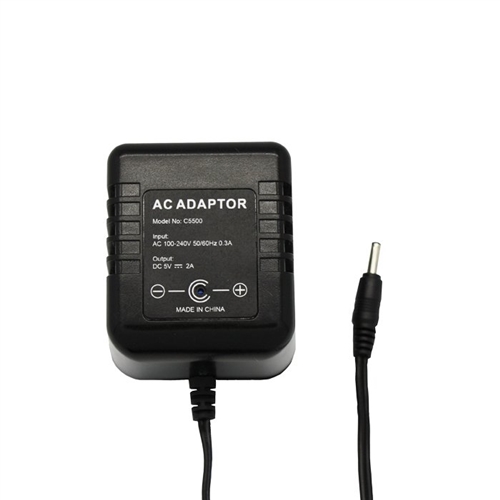

Plug in the HD AC Adaptor DVR and see the power of 1080p high
definition, motion activated recording. Designed with on-board control
switches, there’s never been an easier model to operate. Get easy to
use, high quality performance at a lower price than other brands.
When privacy matters our completely concealed cameras hide in plain site. Designed with reliable DIY functionality, all Zone Shield Hidden Cameras include these features:
Valuable video clarity with HD resoloution 1280 x 720
Adjustable frame rate and quality settings for flexible storage utilization
Continuously powered camera systems
Night Vision – hidden IR lights help your camera capture video at night (select models)
Multiple recording modes allow users to schedule their most important recordings just like the pros do
User friendly interface offers adjustable software settings
Time/Date stamped files
Memory card recording for portable, transferable storage – up to 64Gb
Two choices for file management: No-Overwrite (keeping all videos once card is full), or Overwrite (replace oldest video when space is needed)
1 Year Manufacturer’s Warranty
All SleuthGear Hidden Cameras are crafted in Nashville, TN and include KJB’s commitment to customer service plus free technical support.
1280 x 720 Effective Pixels
1/4″ micron color image sensor
140° Field of View
NTSC Video System
Operating Temp 22°F – 185°F
1280 x 720 Record Resolution
H.264 Video Compression
Up to 64GB memory card capacity (Class XC1) – Confirmed with Toshiba and Samsung EVO
Adjustable Frame Rate
2 Recording modes – Motion and Continuous
File Type – AVI
Operating Temp 32°F – 122°F
TV or PC Playback
No software requried our files are in .AVI
Playback on PC or MAC
VLC Media player (recommended)
Weight: 0lb 5oz
8GB Memory Card
RCA Video Cable (some models)
CD and Quick set up guide
Zone Shield DVR can be set up in 5 simple steps.
It helps to have your TV user’s manual nearby since you may need to change video input on the TV used for initial set-up.
1. Take the unit from box and ensure you have received all included items.
2. Open the device to insert the memory card into the memory card slot and connect the power supply.
To confirm the device is ready, connect the provided video cable from
the unit to your TV video input to see a live video feed and make a
4. Your device is now ready to be placed in the area of desired surveillance.
Default recording setting is Motion Detection. Once the power is turned
on and the device recognizes the memory card, the DVR will begin to
record based on activity detected by the camera.
return of certain items for credit, including:
•Open or used products
•Special order products
•Fees for service performed or shipping
•Single use products such as pepper spray
•Custom built products such as Hidden cameras
•Activated GPS Tracking devices
All Sales on the above listed items are final.
